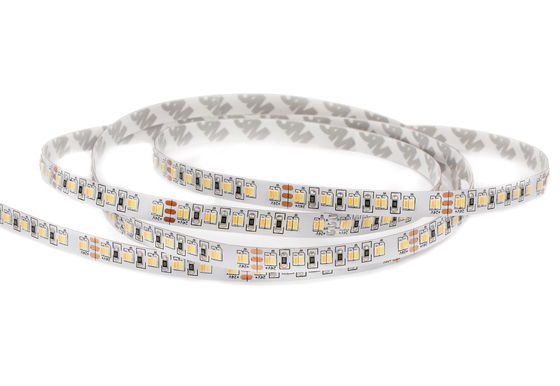

3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Led | 3014 | Qty/m | 240 LEDs/m |
|---|---|---|---|
| Voltage | 24V | Qty/roll | 1200 LEDs/roll |
| IP | IP20 | Packing | 5 M/roll |
| CRI | 85 | Power | 24 W/m |
| Temp | -30°C - 60°C | Life | >35000hours |
| Warranty | 3-5 Yrs | Efficacy | 90-100 Lm/w |
| Lumen | 2500 Lm/m | PCB | 10mm |
| Highlight | high lumen LED strip lights,LED tape strip |
||
Product Description
High Density Natural White LED Strip Dimmable 240 LEDs/m
3014 240.pdf
Product advantages:
- Color Consistency, only one bin
- High Efficacy, 90-165lm/w
- High CRI, 80+,90+,95+
- Color purity: we use quality chip, phosphor golden wires and copper holder, make the SDCM<4
- Long Lifespan: >35000 Hrs
- No dark and uninterrupted Led strip
- High brightness, low decay, low power consumption, LM-80 Tested
- Be able to give soul space, and increase the dynamics of the space, making the space brighter.
Features:
- High lumen 3014SMD 240LED
- 1200led / reel , 5meters / reel
- Heatsink needed when installation
- Warm white: 2400K / 2700K - 3000K,
- Natural white: 4000K - 4500K,
- White: 5000K - 5500K / 6000K - 6500K
- Different connectors to connect the cut parts
- 3M adhersive tape
- Available in IP20
Application area:
- House ceiling lighting
- Hotel room lighting
- Indoor curve lighting
- Restaurant decorative lighting
- coffee shop, bar decorative lighting
Technical details:
|
Details |
Item |
Unit |
Specification |
|
Physical data |
LED type |
SMD |
3014SMD |
|
LED Qty /meter |
LED/m |
240 |
|
|
Dimensions |
mm |
8*1.2*5000 (W*H*L) |
|
|
Type of protection |
IP |
IP20 |
|
|
Working temperature |
°C |
-30°C - 60°C |
|
|
Electrical data |
Power |
W/m |
24W |
|
Voltage |
VDC |
24V |
|
|
Optical data |
Luminous flux |
Lm/m |
2592lm |
|
Beam angle |
degrees |
120 |
|
|
Light color |
|
Warm white/Natural white/White |
|
|
Color BINs |
|
1 BIN |
|
|
Color temperature |
K |
Warm white:2400 / 2700-3000 |
|
|
Natural white :4000-4500 |
|||
|
White: 5000-5500 / 6000-6500 |
|||
|
Color rendering index |
CRI |
80-90 |
|
|
Order reference |
HS code |
94054090 |
|
|
Part. no |
LC240-N3014-w/ww/nw-IP20-24 |
||
|
|
|||
|
|
|||
Dimension:
Installation:
Packing details:
| Items |
Packaging unit |
meters per box |
reels per box |
Dimensions(mm) LxWxH |
Gross weight(kg) |
Volume(cbm) |
|
IP20 Strips |
One Pack |
5m |
1reel |
150*150*12 |
0.11 |
0.00027 |
|
arton box |
500m |
100reel |
500*350*250 |
12 |
0.04375 |
